TC-Electronical Heated

At Lianyungang Teampower, we specialize in creating custom insulation packages tailored to fit your specific loading arm. Our packages are designed to provide exceptional heat retention, safety, and flexibility, making them perfect for use with temperature-sensitive materials such as molten sulfur, bitumen, and fuel oil. Unlike traditional field-applied insulation, our insulation and heating packages are fully removable and reusable. We deliver all insulation materials pre-assembled to the job site for easy installation or field assembly, complete with detailed drawings and step-by-step instructions for added convenience.

Product Description
Technical Specification
Download
Project Reference

Product category: Top loading and unloading arm

TA05V/TA15V Series top loading arm has feature of dual hard pipe design for application of liquified gas application. The end of drop tube is normally flange connection or dry disconnect couplers.

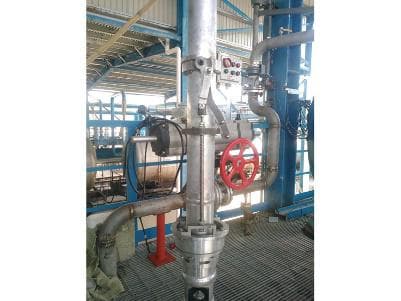

Installation Gallery

Application: top loading and unloading of railcar or tanktruck

Applicable medium: liquefied hydrocarbons
Nominal diameter: DN25、DN50、DN80
Designed temperature: -40℃~60℃
Design pressure: 0.1~2.5Mpa

Optional Accessory Selection include

Outboard End Connections to suit the application

Dry Break Couplers and Adapters
Hammer Union
Lap Flange connections

Outboard Swivel Joints

Style-30 with Handle
Style-50 with Handle
Style-70 with Handle

Ground Verification Monitor

An explosion proof electrical control system to continually monitor static charge accumulation in the vehicle. Communicates with the DCS to allow operations to start/carry-on only when the static accumulation is below recommended levels

Rack Monitor

Where applicable. An explosion proof electrical control system that continuously monitors the high level liquid sensors in a tank/compartment. In the event of a high level signal or a sensor failure the monitor shuts down the loading operation

Control Valves/Isolation Valves

Manual or automated control valve or isolation valve mounted before the inlet to the loading arm or mounted within the loading arm to control flow or act as an isolation valve

Bonding Straps

A hard wired link across each swivel joint to maintain electrical continuity.

Parking Adapter

A device to retain the loading arm in it’s parked position

Position Sensor

Electrical explosion proof proximity or limit switch (s) to advise the position of the loading arm

Land Loading Arm		Download
Design Form
Product Datasheet		Download
Operation Manual		Download

Liyang chemical1		Download
LPG loading arm system		Download
Marine Loading Arm Solution Guide		Download

TC-Electronical Heated

Optional Accessory Selection include
